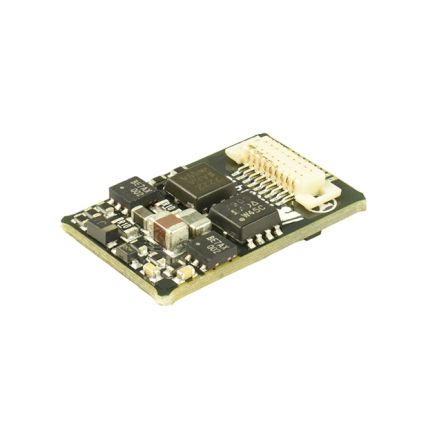

Bachmann 36-567A Next 18 DCC Loco Decoder With Brake Button Function

Name: Cheltenham Model Centre
Telephone: +44 (0)1242 523 117 or 234 644

Product Code: 36567A

Manufacturer Number: 36-567A
Condition: New
Category: Model Railways, DCC Controllers, Decoders And Sound Decoders, DCC Decoders
Brand: Bachmann
DCC Pin: Next 18

£35.95

Information

Highlights include:

- Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function
- 4 powered function outputs (+2 logic level and 2 logic level/SUSI outputs)
- 0.7A continuous load
- Suitable for models equipped with DC motors (including coreless motors)
- Brake Button function for realistic control of braking (operates on F2)
- Function Outputs
- 4 powered-function outputs with overload protection.
- 500mA load per output
- 500mA total load of all function outputs
- 2 additional logic level outputs and 2 logic level/SUSI outputs
- Shunting speed and momentum key selectable

Dimensions
- 15mm x 9.5mm x 2.8mm

Default Address
- Address 3

Programming
- DCC Service Mode & DCC PoM (Programming on Main)
- Additional Features
- RailCom# Feedback system
- Upgradable firmware

Operating Modes

Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function

14, 28 and 128 speed steps

Short and Long addresses

Motor Control Features

Suitable for models equipped with DC motors (including coreless motors)

0.7A continuous load

Variable pulse width frequency motor regulation (up to 40kHz)

Motor output overload protection; Back EMF (de-selectable)

This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MX618N18here.
